Solid Surface Basin Buying Guide: 4 Best Commercial Types for Hotels
For commercial architects, hospitality procurement managers, and general contractors, executing a successful multi-key property development requires a strict balance between aesthetics and asset durability. The guest bathroom vanity zone is a primary focal point of the interior design. However, it is also a high-risk area for long-term maintenance costs, water infiltration, and structural wear.
Choosing a premium Solid Surface Basin setup allows engineering teams to implement a completely non-porous, highly resilient product line. This casting technology outpaces traditional ceramic fixtures by eliminating brittle glaze wear and weak structural points.
This comprehensive guide breaks down the four primary commercial configurations to streamline your next project submittal.
📋 Table of Contents

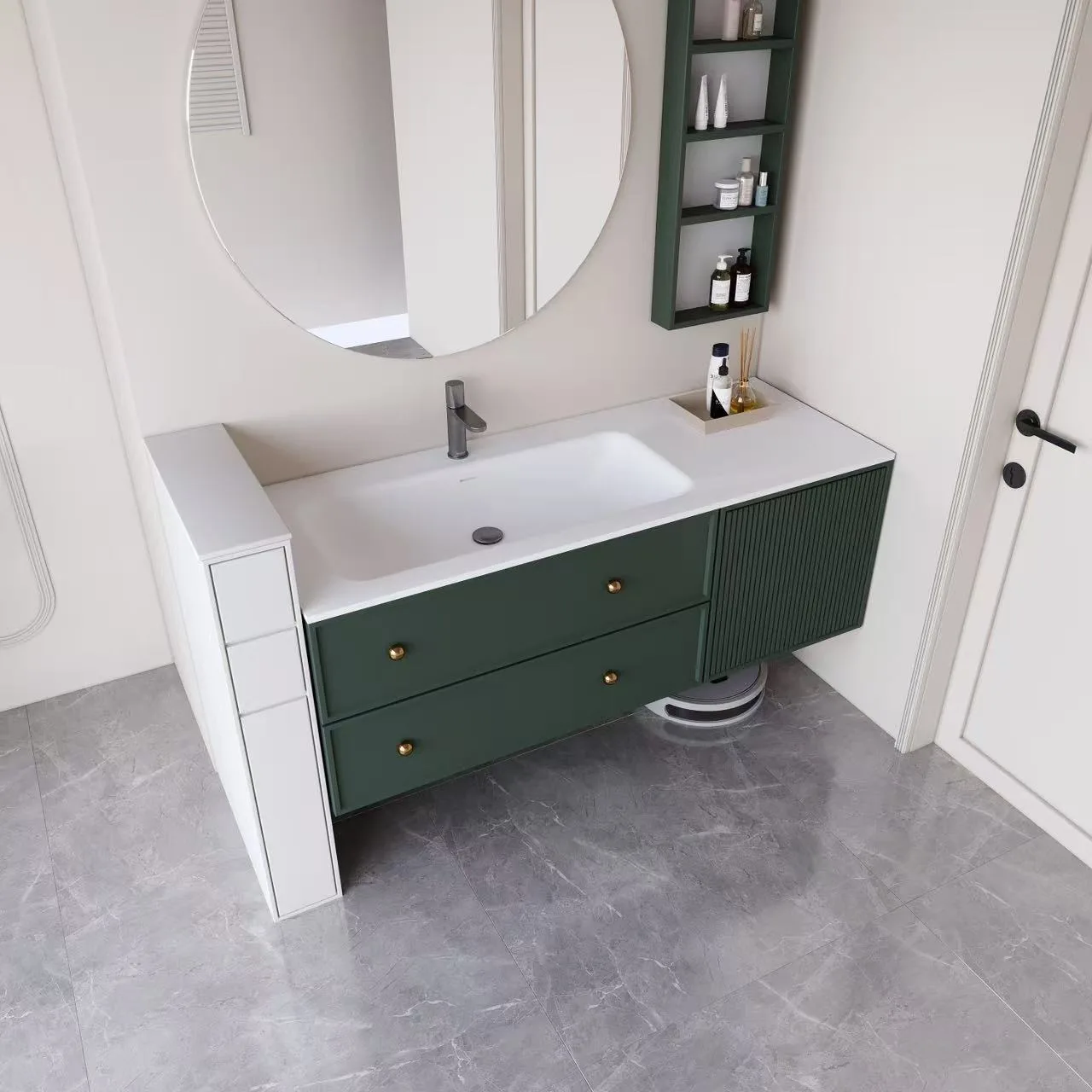

1. Integrated Vanity Sinks: Seamless Maintenance Efficiency
An integrated vanity setup represents the pinnacle of modern structural ergonomics for mid-to-high-tier hotel developments. In this configuration, the countertop slab and the bowl are cast together as a single, continuous sheet of composite material.
By removing the traditional seam lip between the sink bowl and the surrounding deck, you completely eliminate the spaces where mold, bacteria, and grime accumulate. Housekeeping crews can wipe down the surface with a single stroke, lowering daily cleaning times across hundreds of guest suites.
Furthermore, these integrated units drop directly onto your pre-fabricated bathroom cabinet framework. This plug-and-play installation minimizes on-site carpentry labor, helping general contractors protect their critical path schedules.
🛠️ Integrated Solid Surface Basin Installation Flow
Step 1: Framework Alignment – Secure the structural base cabinet or steel support wall brackets, using a digital level to ensure zero variance.
Step 2: Adhesive Preparation – Apply a continuous bead of high-strength structural adhesive along the top edges of the vanity cabinet framing.
Step 3: Unit Placement – Position the integrated slab vertically onto the cabinet shell, ensuring flush alignment with your wall layout.
Step 4: Plumbing Tie-In – Connect the integrated overflow channels, waste strainers, and hot/cold braided supply lines.
Step 5: Perimeter Sealing – Run an anti-microbial silicone bead along the wall-to-counter junctions, followed by a 24-hour water-pressure check.

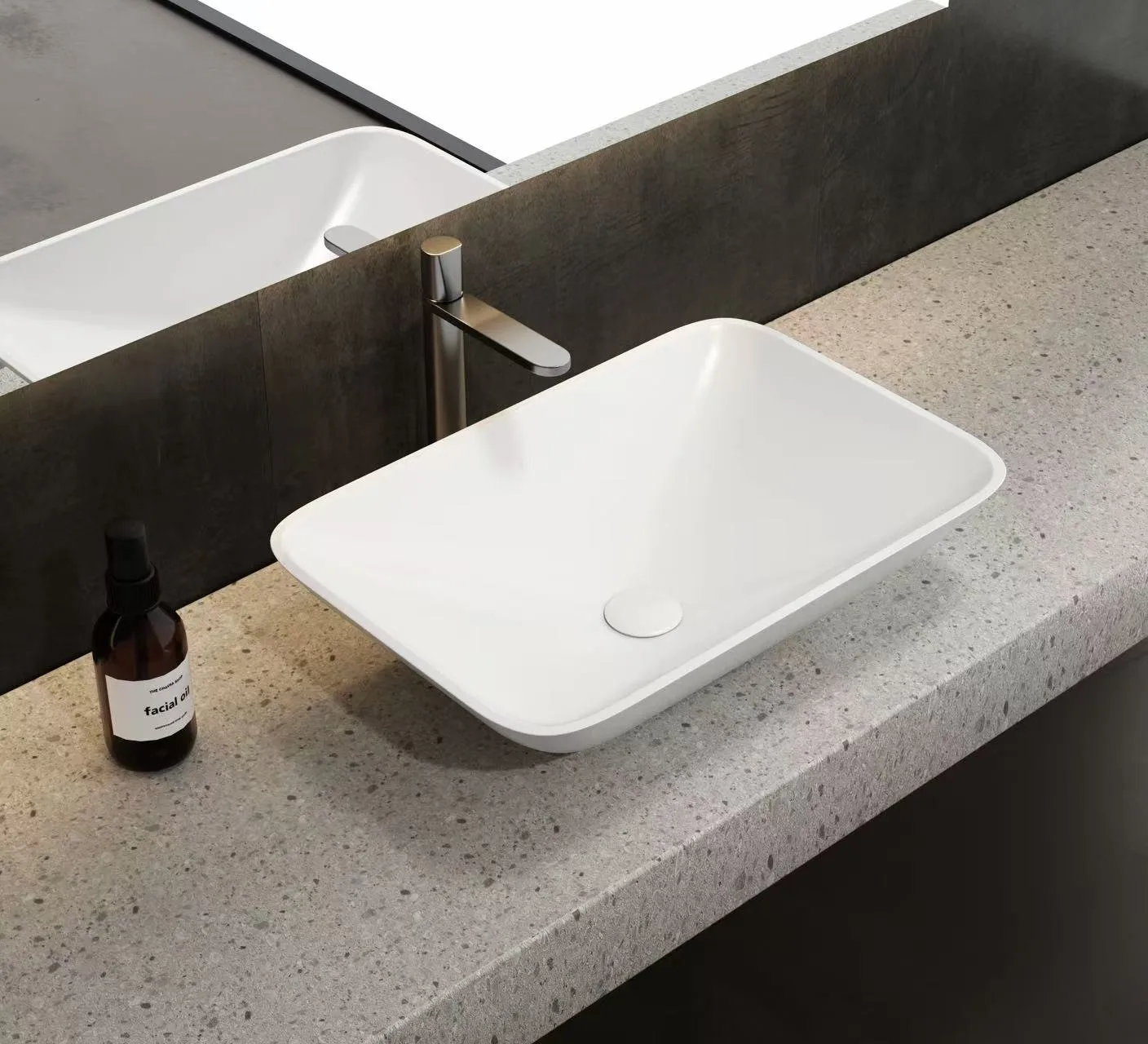

2. Above-Counter Vessel Sinks: High-Contrast Sculptural Art
Above-counter vessel basins stand entirely on top of the finished countertop deck, functioning as distinct sculptural features.
Because the entire outer profile of the bowl is exposed, it showcases the clean, stone-like matte finish of the cast polymer compound. This offers interior designers immense aesthetic freedom, allowing them to pair geometric fixtures with contrasting dark wood millwork or custom terrazzo surfaces.
When managing an above-counter project layout, ensure your faucet length and deck height are scaled together to prevent splashing under commercial water pressure.
🛠️ Above-Counter Solid Surface Basin Installation Flow
Step 1: Deck Marking – Scribe the exact waste outlet and faucet hole center points onto the finished counter deck according to your architectural templates.
Step 2: Core Drilling – Use a CNC router or a diamond core drill bit to create the required cutouts through the counter deck surface.
Step 3: Base Adhesion – Apply a clear silicone gasket or sealing compound to the bottom mounting rim of the basin profile.
Step 4: Mechanical Lockdown – Lower the basin over the drain hole, then tighten the commercial-grade drain body assembly from beneath the counter to clamp the unit in place.
Step 5: Testing Cycle – Install the plumbing trim and run the faucet at maximum volume to verify the drain seals are completely secure.
3. Undermount Sinks: Smooth Flush Countertops
Undermount sinks attach securely underneath a pre-cut countertop opening, keeping the rim hidden beneath the deck line.
This style provides a completely flat, rimless workspace. Housekeeping staff can sweep water and debris directly into the bowl without catching on an exposed outer edge, making it a reliable standard for high-traffic corporate developments and extended-stay apartments.
🛠️ Undermount Solid Surface Basin Installation Flow
Step 1: Reverse Milling – Use factory CNC machinery to mill a step-recess into the underside of the stone or quartz vanity deck matching your sink profile.
Step 2: Rim Preparation – Clean the basin flange with isopropyl alcohol, then apply a uniform bead of high-performance epoxy bonding agent.
Step 3: Bracket Clamping – Lift the basin from beneath the deck cutout and secure it in place using specialized under-counter G-clamps.
Step 4: Anchor Anchor – Drill expansion anchor holes into the underside of the counter deck to bolt heavy-duty metal L-shaped support brackets for permanent structural reinforcement.
Step 5: Curing & Cleanup – Allow the adhesive to cure completely for 24 hours before removing the alignment clamps and checking the plumbing layout.

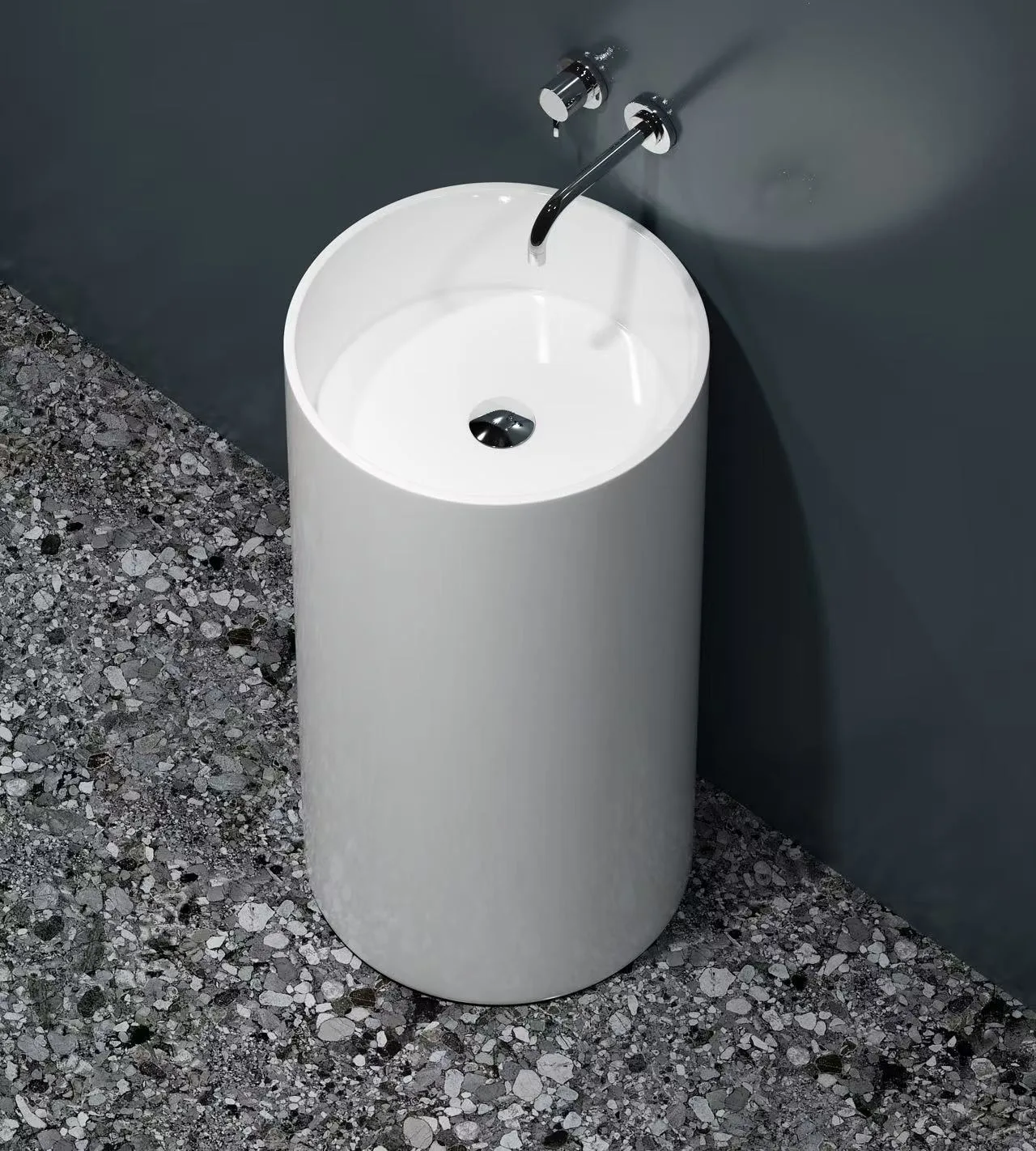

4. Freestanding Pedestal Sinks: Space-Saving Monolithic Profiles
Pedestal or freestanding column basins are engineered as self-supporting vertical pillars that mount directly to the finished floor line.
By eliminating the underlying wooden storage structure or stone vanity counter, this style frees up significant floor area. This makes it an exceptional choice for luxury hotel lobby restrooms, premium restaurants, or compact powder rooms where spatial efficiency is a priority.
The dense mineral core of the cast polymer ensures the pillar remains perfectly stable, while internal hollow channels cleanly conceal the hot/cold supply lines and waste drainage configurations out of sight.
🛠️ Freestanding Pedestal Solid Surface Basin Installation Flow
Step 1: Waste Axis Mapping – Map the exact floor drain or wall-drain waste center axis point to align precisely with the basin’s internal footprint.
Step 2: Internal Pre-Wiring – Thread the flexible stainless steel hot/cold lines and the flexible waste trap pipe through the hollow center of the pedestal core.
Step 3: Anchor Setting – Secure the bottom base plate of the column to the concrete subfloor using heavy-duty anchor bolts or structural industrial epoxy.
Step 4: Bowl Leveling – Mount the upper basin basin onto the pillar core, adjusting the internal leveling legs to ensure perfect balance before connecting the faucet lines.
Step 5: Perimeter Joint Caulk – Apply professional-grade sealant to the floor-to-column and wall-to-basin seams to finish the installation.
5. Commercial Project Procurement Matrix
To assist your specification review, this matrix compares each Solid Surface Basin configuration across key performance indicators:
| Basin Configuration | Cleaning Efficiency | Design Versatility | Space Optimization | Primary Commercial Application |
Integrated Vanity Sinks | Excellent (Seamless deck) | Moderate (Molded forms) | High (Combines counter & sink) | Mid-to-High-Tier Hotel Guest Rooms |
Above-Counter Vessel Sinks | Moderate (Requires seam wiping) | Excellent (Distinct shapes) | Moderate (Reduces counter space) | Boutique Hotels & Luxury Spa Suites |
Undermount Sinks | Excellent (Flush rimless edge) | Moderate (Hidden body) | High (Maximizes counter area) | High-Traffic Corporate Commercial & Apartments |
Freestanding Pedestal Sinks | Excellent (Easy outer wipe) | High (Sculptural profile) | Excellent (Minimal footprint) | Lobby Restrooms & Luxury Powder Rooms |
🏭 Global B2B Supply Chain Execution with HONDAO
Scaling these four distinct formats across a high-volume commercial development requires an industrial partner that maintains strict compliance with international manufacturing benchmarks. Our cast polymer collection meets the physical performance metrics established by ISO Standards and the American National Standards Institute for non-porous composite durability.
We recognize that standardized dimensions do not always match complex structural layouts on-site. That is why our production floor supports full OEM / customization programs. Whether you need to adjust custom outer dimensions for an integrated unit, alter drain orientations, or coordinate color matching with our matching Solid Surface Freestanding Bathtubs and Solid Surface Shower Wall Panels, we customize each order to match your exact spatial blueprints.
Backed by 21 years of direct B2B contract manufacturing experience, HONDAO provides deep supply chain reliability and robust logistics management. We secure all international bulk shipments using heavy-duty vertical pallet crating and tight container packaging to ensure zero-defect ocean freight delivery directly to your job site.
