The Matte White Solid Surface Ramp Undermount Basin (Model: HD-TX122) delivers an innovative architectural profile and superior hygienic performance to modern luxury hospitality suites, boutique hotel washrooms, executive commercial restrooms, and high-end residential master baths. Precision-cast from high-purity aluminum trihydrate (ATH) mineral filler and cross-linked acrylic resin, this undermount lavatory features an engineered inclined ramp base with an offset corner drain. Specifying the Matte White Solid Surface Ramp Undermount Basin provides commercial project developers, interior architects, and procurement managers with an ultra-durable, stain-resistant wet fixture engineered for seamless integration beneath custom quartz, marble, and solid stone vanities.

Table of Contents

1. Architectural Design of the Matte White Solid Surface Ramp Undermount Basin

2. Commercial Project Advantages: Solid Surface vs. Traditional Ceramic Sinks

3. Detailed Technical Specifications for Matte White Solid Surface Ramp Undermount Basin HD-TX122

4. Material Science and Long-Term Value Engineering

5. Contractor Installation Guide for Matte White Solid Surface Ramp Undermount Basin

6. Facility Care and Low-Cost Maintenance Protocol

7. Frequently Asked Questions (FAQ) for B2B Procurement

Architectural Design of the Matte White Solid Surface Ramp Undermount Basin

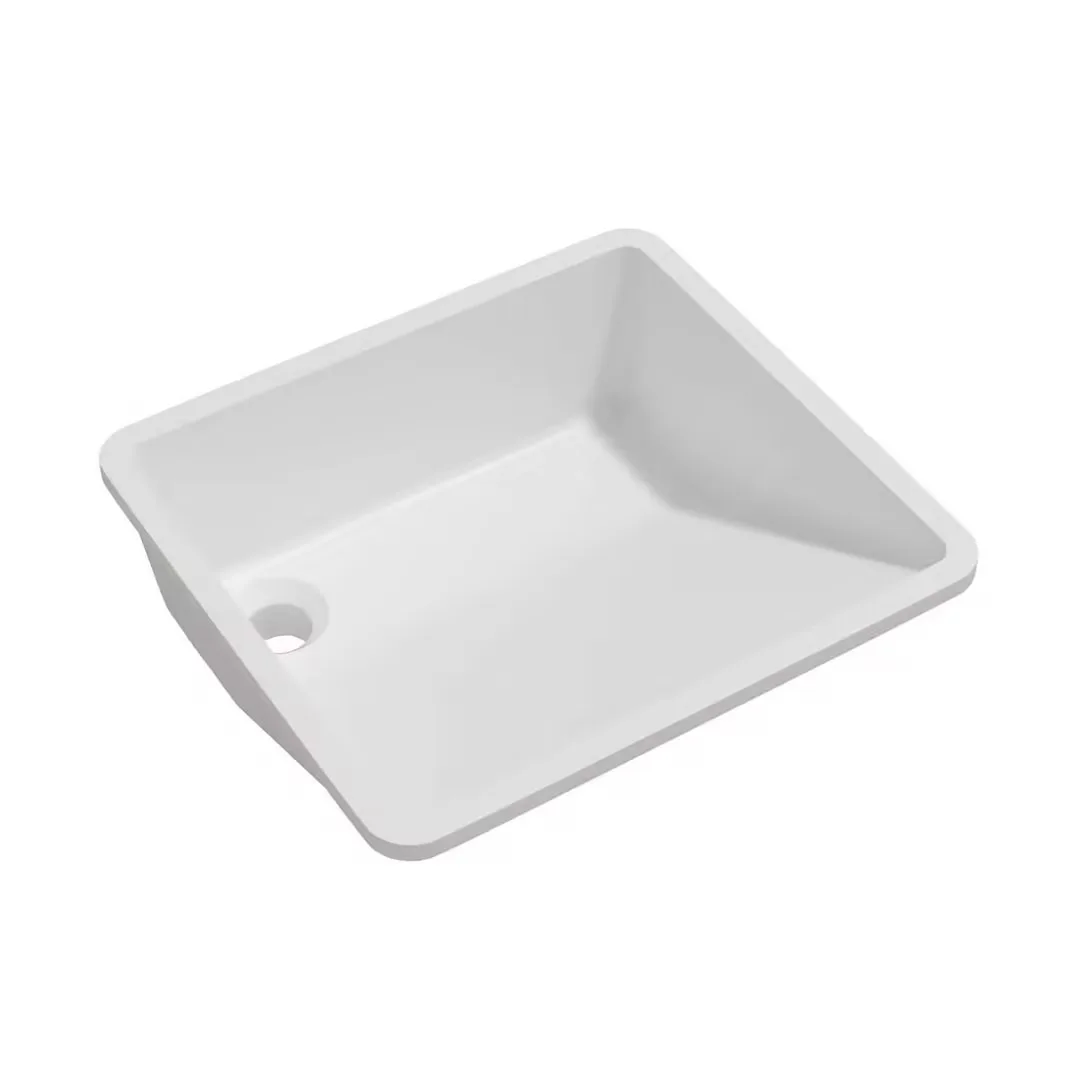

Modern commercial restroom architecture prioritizes clean, uncluttered surfaces that maximize usable vanity counter space while maintaining comfortable hand-washing depth. The Matte White Solid Surface Ramp Undermount Basin achieves this balance through an engineered rectangular profile featuring an integrated inclined floor, as shown . The flat upper perimeter bonding flange is engineered for precise undermount adhesion, creating a flush junction that allows countertop moisture, water droplets, and soap spills to be wiped directly into the bowl.

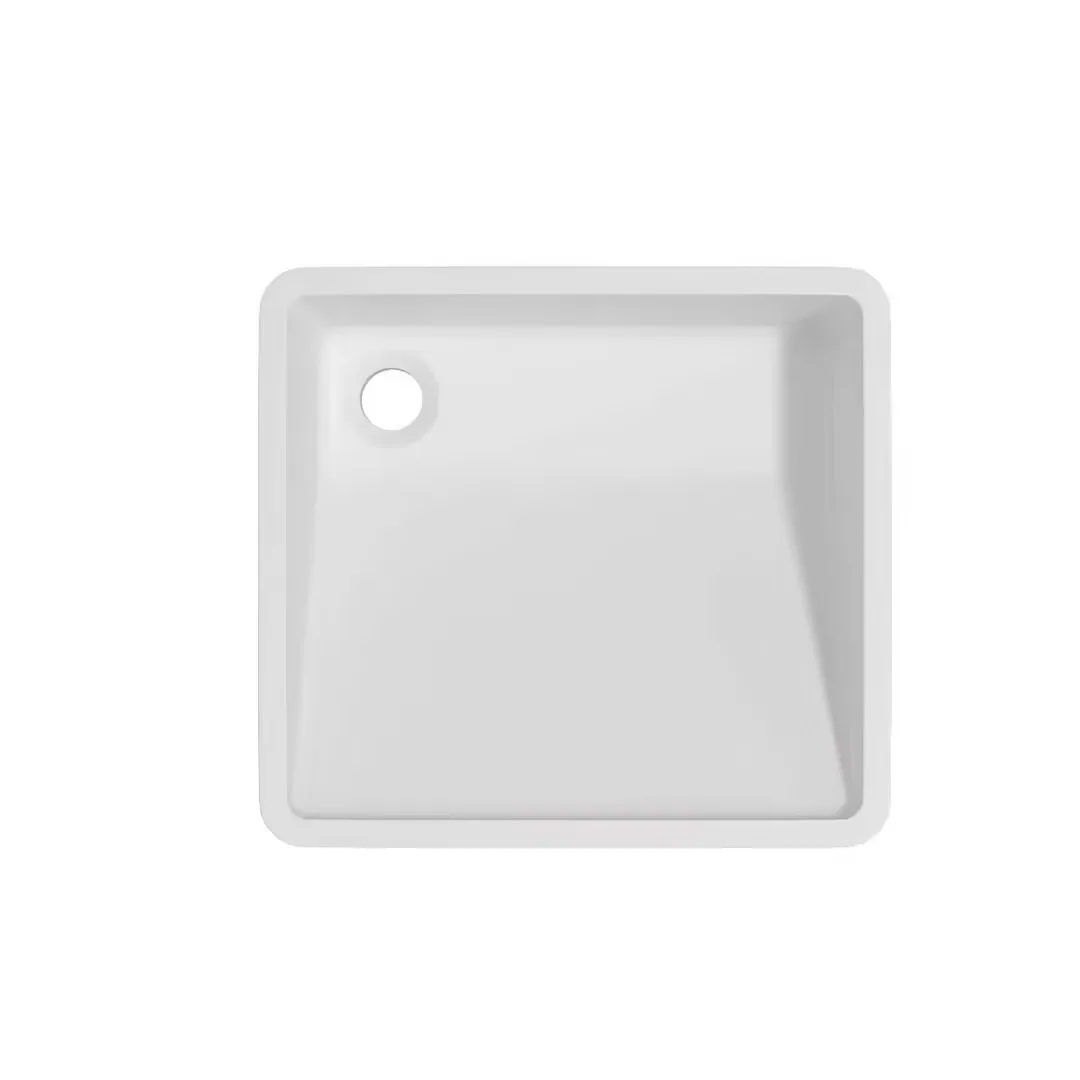

The interior basin features a continuous sloped plane that channels water smoothly across the surface directly toward an offset corner drain outlet, as illustrated . This dynamic ramp design accelerates drainage, reduces water splashing, and eliminates standing water accumulation. When paired with contrasting dark marble, textured quartz, or solid stone vanity slabs, the sink’s crisp geometric slopes form an elegant architectural focal point suited for both single-station powder rooms and high-density multi-station restrooms.

Commercial Project Advantages: Solid Surface vs. Traditional Ceramic Sinks

When selecting undermount lavatory basins for large-scale hospitality portfolios and commercial developments, solid stone resin composite construction provides significant operational advantages over standard glazed vitreous china:

• Pore-Free Hygienic Surface: Traditional ceramic glazes often contain microscopic pinholes that collect soap scum, water minerals, and bacteria over time. Our solid surface composite is 100% non-porous, naturally repelling liquid stains and providing an ultra-hygienic washing zone.

• Superior Impact Resistance: Brittle ceramic bowls are susceptible to hairline glaze crazing, edge chipping, and cracks caused by dropped glass cosmetics or brass toiletries. High-density stone resin composite possesses superior tensile toughness and structural impact resistance.

• Full-Body Homogeneous Material: Solid surface composite is completely uniform in color and density throughout its entire cross-section. If surface abrasions occur, they can be sanded and renewed directly on-site to match coordinating freestanding solid surface bathtubs seamlessly.

Detailed Technical Specifications for Matte White Solid Surface Ramp Undermount Basin HD-TX122

To assist architectural specifiers, mechanical drafters, and site plumbing teams with accurate vanity countertop cutouts and plumbing rough-in layout, the primary technical specifications for the Matte White Solid Surface Ramp Undermount Basin (HD-TX122) are tabulated below.

Material Science and Long-Term Value Engineering

The Matte White Solid Surface Ramp Undermount Basin is manufactured through advanced vacuum casting that blends premium cross-linked acrylic polymer resin with refined aluminum trihydrate (ATH) natural mineral filler. This dense formulation creates a solid structural matrix free of internal air voids, providing high resistance to thermal shock from cycling hot and cold water temperatures.

Because the mineral-resin composite is homogeneous and non-porous, it resists chemical penetration from liquid hand soaps, cosmetics, hair products, mouthwash, and hard-water scale. There are no delicate gel-coats or surface veneers to peel, blister, or yellow over decades of commercial service, lowering mid-lifecycle replacement expenses and ensuring long-term asset value for commercial property owners.

Contractor Installation Guide for Matte White Solid Surface Ramp Undermount Basin

Installing the Matte White Solid Surface Ramp Undermount Basin follows standard commercial undermount vanity procedures for fast job-site turnaround:

1. Countertop CNC Fabrication: Cut and polish the countertop opening using the manufacturer-provided DXF cutout template, ensuring clean inner edge radii matching the inner basin rim.

2. Undermount Anchoring Setup: Install threaded brass inserts or undermount sink clips into the underside of the vanity slab to provide secure mechanical support.

3. Sealing Bead Application: Apply a continuous, generous bead of high-grade, neutral-cure mold-resistant silicone along the upper perimeter flange of the solid surface basin.

4. Basin Clamping & Alignment: Position the basin beneath the countertop opening, tighten the undermount brackets evenly to achieve a watertight bond, and wipe away silicone squeeze-out immediately.

5. Plumbing Integration: Install the standard 45mm non-overflow pop-up drain assembly at the offset corner opening and connect the P-trap waste line, ensuring reliable drainage that coordinates with complementary solid surface vanity collections [cite: 43, 45].

Facility Care and Low-Cost Maintenance Protocol

Housekeeping staff and commercial facility maintenance teams can preserve the satin matte finish of the Matte White Solid Surface Rectangular Undermount Basin using basic cleaning protocols:

• Daily Housekeeping Routine: Rinse the basin ramp surface daily and wipe clean with a soft microfiber cloth and a mild neutral liquid soap or foam cleaner.

• Removing Soap Scum & Scale: For cosmetic residues, soap scum, or hard-water mineral deposits along the slope, apply a mild abrasive cream cleanser and scrub gently in circular motions using a soft nylon pad.

• On-Site Surface Restoration: Fine hairline scratches or surface scuffs can be buffed out on-site using fine 800-to-1200 grit wet/dry sandpaper, instantly restoring the uniform factory satin matte texture without recoating.

Frequently Asked Questions (FAQ) for B2B Procurement

Can the Matte White Solid Surface Ramp Undermount Basin be produced in custom dimensions?

Yes. Beyond our standard 500mm and 550mm length options, our manufacturing facility can develop custom mold dimensions and basin depths for volume commercial contract orders to meet specific project millwork requirements.

Does the offset corner drain require a specialized waste assembly?

No. The sink features a standard universal 45mm (1-3/4 inch) drain hole, allowing standard non-overflow pop-up drain assemblies to be installed without custom plumbing adapters.

How is the product packed to prevent damage during ocean container transport?

Each Matte White Solid Surface Ramp Undermount Basin is wrapped in a protective anti-scratch film, fitted within custom-molded EVA shock-absorbing foam inserts, and packed inside a reinforced 5-ply export master carton or palletized wooden crate to guarantee zero-breakage delivery during international sea freight shipping.
