The Matte White Solid Surface Elliptical Undermount Basin (Model: HD-TX105) delivers a timeless organic silhouette and superior hygienic performance to modern luxury hospitality environments, boutique hotel guest suites, executive restrooms, and high-end residential master baths. Precision-cast from high-purity aluminum trihydrate (ATH) and acrylic resin, this symmetrical elliptical lavatory pairs clean architectural curves with an ultra-smooth satin matte touch. Specifying the Matte White Solid Surface Elliptical Undermount Basin provides commercial project developers, architects, and procurement managers with an ultra-durable, stain-resistant wet fixture engineered for seamless integration beneath custom quartz and natural stone vanities.
Table of Contents
Architectural Design of the Matte White Solid Surface Elliptical Undermount Basin
Commercial Project Advantages: Solid Surface vs. Traditional Ceramic Sinks
Detailed Technical Specifications for Matte White Solid Surface Elliptical Undermount Basin HD-TX105
Material Science and Long-Term Value Engineering
Contractor Installation Guide for Matte White Solid Surface Elliptical Undermount Basin
Facility Care and Low-Cost Maintenance Protocol
Frequently Asked Questions (FAQ) for B2B Procurement
Architectural Design of the Matte White Solid Surface Elliptical Undermount Basin

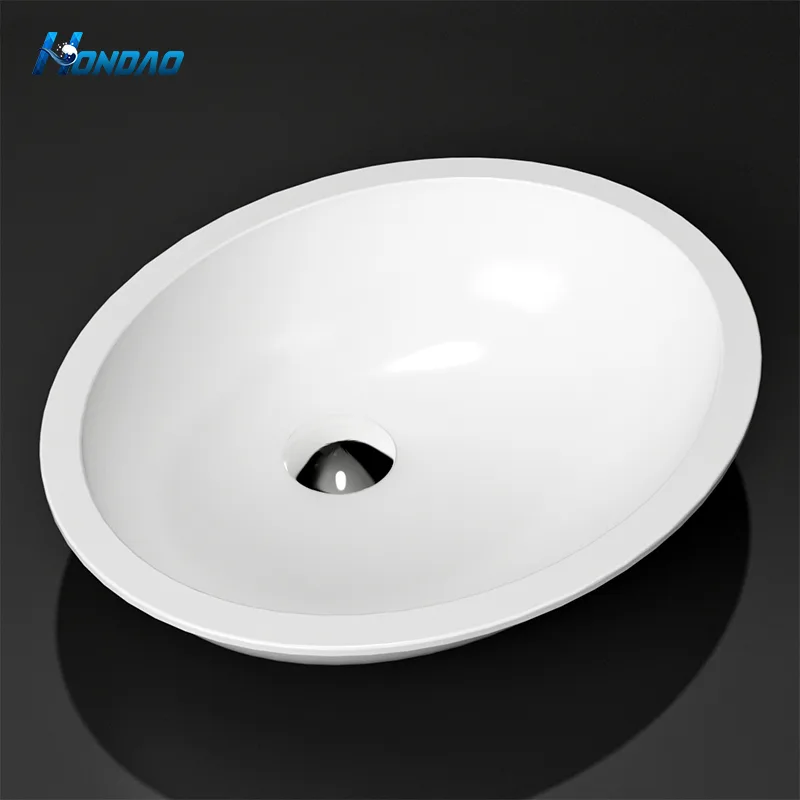

Modern commercial restroom architecture prioritizes clean, uncluttered surfaces that maximize usable vanity counter space while maintaining comfortable hand-washing depth. The Matte White Solid Surface Elliptical Undermount Basin achieves this balance through a symmetrical elliptical footprint, featuring a wide perimeter bonding flange that transitions seamlessly into a gently sloping inner basin, as shown. The flat upper flange is engineered for precise undermount bonding, creating a flush junction that allows countertop moisture, water droplets, and soap spills to be wiped directly into the bowl.
The interior basin walls feature gentle, uniform slopes that guide water smoothly toward the central waste outlet, as illustrated in HD-TX105 (2).jpg. This slope profile prevents standing water accumulation while producing soft shadow lines across the satin matte white surface. When installed beneath contrasting black marble, veined quartz, or solid stone vanity slabs, the sink’s clean organic contour forms an elegant architectural focal point suited for both single-station guest suites and high-density multi-station commercial restrooms.
Commercial Project Advantages: Solid Surface vs. Traditional Ceramic Sinks
When selecting undermount lavatory basins for large-scale hospitality portfolios and commercial developments, solid stone resin composite construction provides significant operational advantages over standard glazed vitreous china:
Pore-Free Hygienic Surface: Traditional ceramic glazes often contain microscopic pinholes that collect soap scum, water minerals, and bacteria over time. Our solid surface composite is 100% non-porous, naturally repelling liquid stains and providing an ultra-hygienic washing zone.
Superior Impact Resistance: Brittle ceramic bowls are susceptible to hairline glaze crazing, edge chipping, and cracks caused by dropped glass cosmetics or heavy brass toiletries. High-density stone resin composite possesses superior tensile toughness and structural impact resistance.
Full-Body Homogeneous Material: Solid surface composite is completely uniform in color and density throughout its entire cross-section. If surface abrasions occur, they can be sanded and renewed directly on-site to match coordinating freestanding solid surface bathtubs.
Detailed Technical Specifications for Matte White Solid Surface Elliptical Undermount Basin HD-TX105
To assist architectural specifiers, mechanical drafters, and site plumbing teams with accurate vanity countertop cutouts and plumbing rough-in layout, the primary technical specifications for the Matte White Solid Surface Elliptical Undermount Basin (HD-TX105) are tabulated below.
| Feature / Parameter | Commercial Product Specification |
| Product Model | HD-TX105 |
| Product Title | Matte White Solid Surface Elliptical Undermount Basin for Luxury Hotel Bathrooms |
| Material Base | High-Purity Acrylic Resin + Advanced Aluminum Trihydrate (ATH) Matrix |
| Surface Finish | Smooth Satin Matte White (High-Gloss White available upon request) |
| Mounting Style | Undermount Installation (Flush-mount compatible with custom templates) |
| Basin Geometry | Symmetrical Elliptical Oval with Wide Perimeter Bonding Flange |
| Standard Dimensions | 490mm Length x 380mm Width x 140mm Depth / 540mm Length x 410mm Width x 150mm Depth |
| Drain Opening | Standard 45mm (1-3/4″) Universal Center Drain Outlet (No Overflow) |
| Faucet Compatibility | Countertop Deck-Mounted Faucet or Concealed Wall-Mounted Basin Spout |
| Net Product Weight | Approx. 7.5 kg – 9.0 kg |
Material Science and Long-Term Value Engineering
The Matte White Solid Surface Elliptical Undermount Basin is manufactured through advanced vacuum casting that blends premium cross-linked acrylic polymer resin with refined aluminum trihydrate (ATH) natural mineral filler. This dense formulation creates a solid structural matrix free of internal air voids, providing high resistance to thermal shock from cycling hot and cold water temperatures.
Because the mineral-resin composite is homogeneous and non-porous, it resists chemical penetration from liquid hand soaps, cosmetics, hair products, mouthwash, and hard-water scale. There are no delicate gel-coats or surface veneers to peel, blister, or yellow over decades of commercial service, lowering mid-lifecycle replacement expenses and ensuring long-term asset value for commercial property owners.
Contractor Installation Guide for Matte White Solid Surface Elliptical Undermount Basin
Installing the Matte White Solid Surface Elliptical Undermount Basin follows standard commercial undermount vanity procedures for fast job-site turnaround:
Countertop CNC Fabrication: Cut and polish the countertop opening using the manufacturer-provided DXF cutout template, ensuring smooth elliptical edge radii matching the inner basin rim.
Undermount Anchoring Setup: Install threaded brass inserts or undermount sink clips into the underside of the vanity slab to provide secure mechanical support, as illustrated in
HD-TX105 (2).jpg.Sealing Bead Application: Apply a continuous, generous bead of high-grade, neutral-cure mold-resistant silicone along the upper perimeter flange of the solid surface basin.
Basin Clamping & Alignment: Position the basin beneath the countertop opening, tighten the undermount brackets evenly to achieve a watertight bond, and wipe away silicone squeeze-out immediately.
Plumbing Integration: Install the standard 45mm non-overflow pop-up drain and connect the P-trap waste line, ensuring reliable drainage that coordinates with complementary solid surface vanity collections.
Facility Care and Low-Cost Maintenance Protocol
Housekeeping staff and commercial facility maintenance teams can preserve the satin matte finish of the Matte White Solid Surface Elliptical Undermount Basin using basic cleaning protocols:
Daily Housekeeping Routine: Rinse the basin surfaces daily and wipe clean with a soft microfiber cloth and a mild neutral liquid soap or foam cleaner.
Removing Soap Scum & Scale: For cosmetic residues, soap scum, or hard-water mineral deposits, apply a mild abrasive cream cleanser and scrub gently in circular motions using a soft nylon pad.
On-Site Surface Restoration: Fine hairline scratches or surface scuffs can be buffed out on-site using fine 800-to-1200 grit wet/dry sandpaper, instantly restoring the uniform factory satin matte texture without recoating.
Frequently Asked Questions (FAQ) for B2B Procurement
Can the Matte White Solid Surface Elliptical Undermount Basin be produced in custom dimensions?
Yes. Beyond our standard 490mm and 540mm elliptical sizing options, our manufacturing facility can develop custom mold dimensions and basin depths for volume commercial contract orders to meet specific project millwork requirements.
What type of pop-up drain is recommended for this basin?
Because model HD-TX105 is designed with clean interior lines and without an internal overflow channel, it should be paired with a standard universal non-overflow pop-up drain assembly in chrome, matte black, brushed brass, or gunmetal finish.
How is the product packed to prevent damage during ocean container transport?
Each Matte White Solid Surface Elliptical Undermount Basin is wrapped in a protective anti-scratch film, fitted within custom-molded EVA shock-absorbing foam inserts, and packed inside a reinforced 5-ply export master carton or palletized wooden crate to guarantee zero-breakage delivery during international sea freight shipping.
