4 Reasons to Spec an ADA Compliant Shower Pan for US Projects
In commercial hospitality developments, student housing, and multi-family renovations across North America, adhering to the Americans with Disabilities Act (ADA) accessibility guidelines is both a strict legal mandate and a critical liability safeguard. Failed building inspections due to improper shower threshold bevels, uneven floor transitions, or inadequate drainage slopes can lead to costly occupancy delays and project retrofits.
Specifying a precision-engineered ADA compliant shower pan cast from high-density solid surface ensures full compliance with US building codes while delivering commercial-grade longevity.
Below, we examine four key structural and operational reasons why architects, general contractors, and procurement directors specify GD Hondao’s cUPC-certified ADA shower systems for large-scale commercial rollouts.
Table of Contents
1. Eliminate Inspection Failures with Precision-Molded Low-Profile Thresholds
Under ADA Standards for Accessible Design (Section 608), roll-in and transfer shower enclosures must meet rigorous dimensional tolerances:
Threshold Rise Limits: Maximum threshold height is strictly capped at 1/2 inch with a maximum 1:2 beveled slope (or 1/4 inch vertical rise) to allow seamless wheelchair transfer without jolting.
Standard Footprint Compliance: Standard commercial configurations must maintain exact interior clearances, including 36″ x 36″ for transfer compartments and 30″ x 60″, 36″ x 60″, or 38″ x 60″ for roll-in accessible shower stalls.
GD Hondao’s ADA series shower pans are manufactured using precision CNC-milled steel tooling, ensuring that every molded threshold bevel adheres strictly to federal ADA geometry. Unlike manual job-site mortar work that frequently exceeds allowable threshold heights, Hondao’s prefabricated cast stone bases guarantee consistent dimensional accuracy across hundreds of guestrooms.
2. Pre-Sloped Drainage Geometry vs. Site-Built Tile Failures
A primary cause of failed on-site plumbing audits is improper drainage slope. Traditional wet-bed tile installations rely on manual mason screeding, which frequently creates flat spots where standing water pools or excessive pitches that destabilize shower wheelchairs.
GD Hondao addresses this structural challenge with engineered pre-sloped geometries:
Calibrated Gravity Runoff: Every ADA compliant shower pan is molded with an internal 1:48 to 1:50 drainage slope, accelerating water flow toward the waste outlet without puddling.
Tactile Slate Slip Resistance: Hondao integrates tactile, matte slate textures directly into the solid surface receptor, achieving DIN 51097 Class C / ADA-compliant wet traction without abrasive add-on coatings.
Versatile Drainage Options: Bases are available with traditional center drains, side/end drains (ideal for matching existing tub-to-shower conversion rough-ins), or contemporary concealed stainless steel linear trench drains.
| Feature | GD Hondao Prefabricated Solid Surface Base | Traditional Job-Site Mud-Bed Tiling |
| Threshold Accuracy | Factory-calibrated 1:2 ADA bevel | Highly dependent on trade skill; prone to variance |
| Drainage Slope | Pre-engineered 1:50 constant pitch | Inconsistent pitch; prone to localized pooling |
| Dynamic Point-Load | 300+ lbs zero-deflection cast stone | Porous mortar beds prone to sub-floor cracking |
| Installation Time | Under 1 hour dry assembly | 3 – 4 days multi-step masonry & curing |
| Slip-Resistant Texture | Molded Class C slate grip | Dependent on grout spacing; slick wet surfaces |
3. Pair with Hondao’s Complete Commercial Bathroom Ecosystem
Maximizing operational efficiency on fast-track commercial projects requires single-source supply coordination. GD Hondao provides a comprehensive, turnkey portfolio of commercial sanitary ware engineered to interface directly with our accessible shower receptors:
Hondao 3-Piece Matching Shower Wall Panels: Fabricated from heavy-duty cultured marble or solid surface (standard 36″x60″x96″ footprint), our wall panels feature integrated internal tile flanges that slot over the base to create a 100% waterproof seal. Panels can be pre-reinforced with structural internal blocking to anchor ADA-mandated grab bars and fold-down shower seats.
Hondao ADA-Compliant Ramp Vanity Tops: Seamless solid surface vanity tops engineered with shallow concave basins and open under-counter knee clearance (minimum 27″ high by 30″ wide clearance) for full wheelchair accessibility.
Luxury Suite Bathtubs: For mixed-tier hospitality developments, Hondao supplies freestanding solid surface and luminous translucent crystal resin bathtubs, enabling developers to source accessible guestrooms and penthouse suites from a single trusted factory.
4. Verified cUPC Certification and Heavy-Duty Palletized Logistics
In the North American commercial sector, self-declared compliance claims are insufficient. General contractors must submit third-party certified submittal packages to local building departments before installation.
Dual cUPC & CE Certification: GD Hondao’s solid surface shower receptors are certified under CSA B45.5 / IAPMO Z124 and European CE EN 14527 standards. Each unit undergoes rigorous 300-pound dynamic point-load testing to verify that wheelchair wheels cause zero structural deflection or floor cracking.
Thermal Shock & Stain Resistance: Formulated with high-purity aluminum trihydrate (ATH) and premium polymer resins, Hondao fixtures withstand high-temperature institutional washdowns, hospital-grade disinfectants, and cosmetic chemicals.

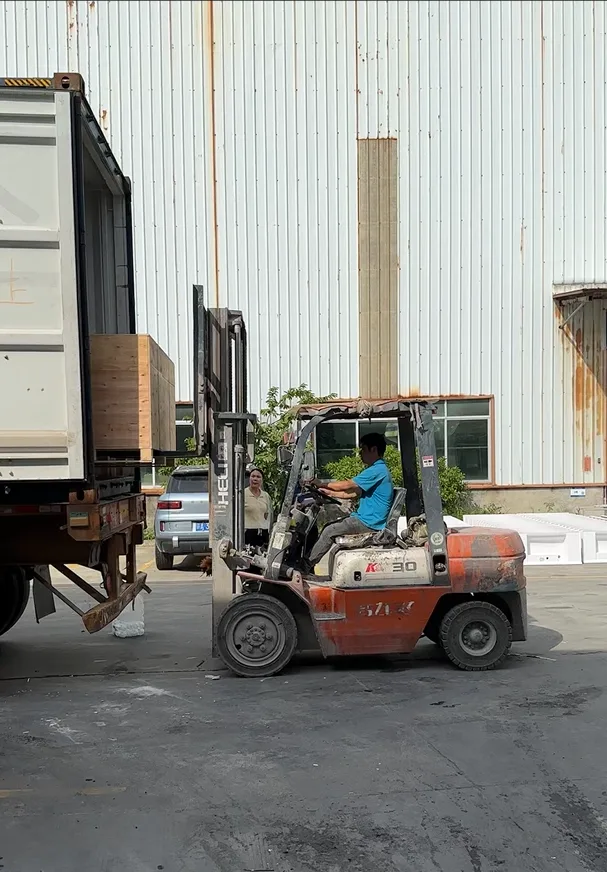

Seaworthy Flat-Pack Crating: To prevent job-site freight damage, shower pans are individually boxed in reinforced edge-protected cartons and flat-stacked on heavy-duty, heat-treated wooden pallets optimized for 40ft high-cube sea container shipping.
Conclusion
Standardizing on GD Hondao’s ADA compliant shower pan systems empowers general contractors and commercial developers to de-risk ADA code compliance, eliminate site-built tile failures, and streamline procurement through a single-source OEM manufacturer. Backed by verified cUPC certification, customizable drain placements, and a full suite of matching wall surrounds and accessible vanity tops, Hondao delivers the ultimate turnkey sanitary solution for high-traffic properties.
Preparing the ADA submittal package for your upcoming hotel, student housing, or multifamily development? Contact GD Hondao today to download technical 2D/3D CAD files, request material test data sheets, or receive a factory-direct volume quotation!
(To independently verify plumbing and safety code compliance for North American projects, visit the official IAPMO Product Listing Directory.)
